Rotating W-Mo Composite Target
Rotating W-Mo Composite Target

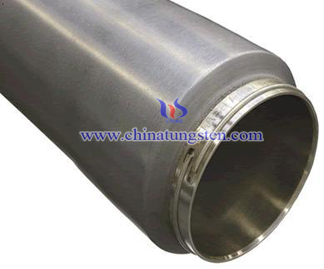

Rotating W-Mo composite target is cylindrical target material. Cylindrical shape tungsten and molybdenum target is equipped with a stationary magnet with gentle rotation. The advantage is the high efficiency (over 70%), the disadvantage is the high cost. Rotating tungsten-molybdenum composite target actually refers to tungsten-molybdenum mammography breast x-ray machine, which is made of metal materials tungsten and molybdenum. General purity requirement for rotating W-Mo composite target is 99.95% or more, and it should have high density and corrosion resistance. China Tungsten Online Manufacturing & Sales has been able to produce a very stable product after years of research and producing experience. Because of high melting point, low vapor pressure, strong high-temperature tungsten particles powerful, high elastic modulus, excellent electrical and thermal resistance, rotating tungsten-molybdenum composite target is mainly used in medical radiology equipment, solar cell , architectural glass, automotive glass, semiconductor, flat panel television.
Basic Information
Specifications: ∅ (60-70) mm, special specifications can be produced in accordance to customers.
Chemical Composition: W: 95%, Re: 5%.
Density: Tungsten Layer: ≥19.1g/cm3, Molybdenum Layer: ≥9.8 g/cm3.
Grain Size: Tungsten layer is greater than 700, molybdenum layer is greater than 400.

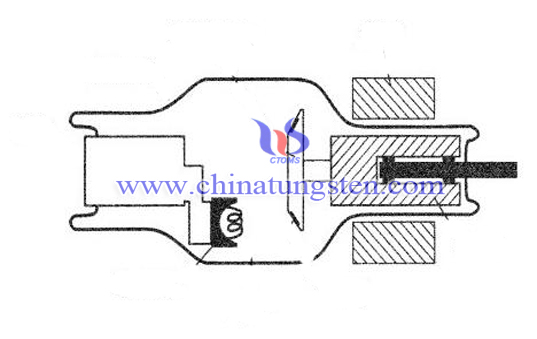

Applications: X-ray tube rotating anode.
Production process: Raw material - Test - Hot rolling - Annealing - Alkali Wash- Test - Vacuum Annealing - Test - Cold Rolling - Leveling - Cut Vacuum Annealing - Test - Packaging.
