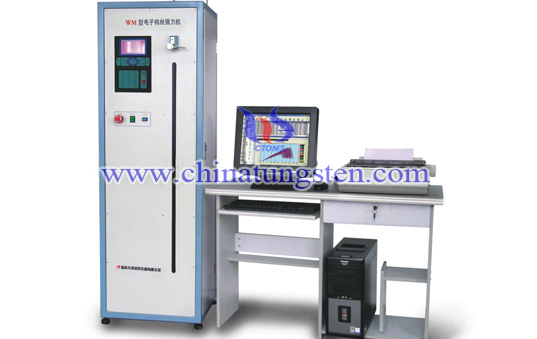

Tungsten Wire Tensile Test Machine
![tungsten wire tensile test machine image tungsten wire tensile test machine image](image/tungsten-wire-tensile-test-machine-en-image.jpg)
Tungsten Wire Tensile Test Machine
Tungsten wire tensile test machine is used to test the tensile strength properties of various types of tungsten wire, molybdenum wire and other metal wire. Its main functions are: tensile properties, tensile strength and deformation rate, tensile force, tear resistance, heat seal strength properties, drum peel test, 90 degrees peel, rope tensile force, trouser tear strength, 180 degree peel, compression test, bending test. Currently, the best software features and the highest accuracy test of a model is WM021 electronic tungsten wire tensile test machine, the machine can be controlled by computer, tested at the same time, it also can be operated on the host.
Measuring Range
Specification | -3 Type | -5 Type | -10 Type | -30 Type | -50 Type |
Force Measurement Range | 0-3000cN | 0-5000cN | 0-10000cN | 0-30000cN | 0-50000cN |
Resolution Rate | 1cN | 1cN | 2cN | 5cN | 5cN |
Basic Parameter
1. Maximum Load: Within 5000N (arbitrarily selected)
2. Load Cell Accuracy Rally: 0.01%
3. Test Accuracy: <± 0.5% (according to the national measurement report)
4. Unit Selection: gf, Kgf, N, KN, LB
5. Operation Mode: Full computer control
6. Test Software: Chinese and English conversion, as well as one of the latest eight languages software
7. Operating Mode: Full computer control
8. Effective Width: 150mm
9. Effective Tension Space: 800mm
10. Rally Test Speed: 0.001~500mm/min (arbitrarily adjusted), can also reach 1000mm/min
11. Speed Precision Displacement Measurement Accuracy, Deformation Measurement Accuracy: Within ± 0.5%
12. Safety Devices: Electronic limit protection, emergency stop button
13. Patent System: Full wireless remote control or the test instrument itself LCD control
14. Fixture Configuration:according to users' requirements for product samples fixture One payment
15. Machine Weight: About 85kg
16. Power Supply Voltage: 220V
17. Host Size: 590 * 355 * 1640mm.
