Tungsten Electrode in Aluminum Alloy Welding
Tungsten electrode in aluminum alloy welding refers to a non-consumable electrode used in aluminum and aluminum alloy TIG welding (Tungsten Inert Gas, TIG) and PAW (Plasma Arc Welding). The aluminum oxide film on the surface of aluminum has a melting point of approximately 2050°C, while the aluminum base metal melts at approximately 660°C. Alternating Current (AC) welding is required to simultaneously remove the oxide layer and melt the base material. The tungsten electrode provides a stable arc and electron emission, making it a critical material for welding quality.
1. How Do Tungsten Electrodes Work in Aluminum Alloy Welding?
The tungsten electrode and workpiece form an alternating arc in AC welding. During the positive half-cycle, cathodic cleaning removes the oxide film from the aluminum alloy surface. During the negative half-cycle, most of the heat is generated to melt the aluminum base metal and form the weld.
2. Types and Features of CTIA’s Tungsten Electrodes in Aluminum Alloy Welding
(1) Zirconiated Tungsten Electrode
Features strong contamination resistance, a stable AC welding arc, and a tip resistant to overheating, serving as the mainstream electrode for AC TIG welding of aluminum alloy.
(2) Lanthanated Tungsten Electrode
Offers good arc ignition and high arc stability, suitable for inverter AC welding machines and medium-to-high requirement welding conditions.
(3) Pure Tungsten Electrode
Cost-effective and suitable for conventional AC welding, although arc stability and tip retention are relatively lower.
(4) Ceriated Tungsten Electrode
Offers sensitive arc ignition, suitable for low-current aluminum alloy welding and thin sheet precision welding conditions.
(5) Composite Rare Earth Tungsten Electrode
Delivers balanced comprehensive performance with good arc ignition and burn-off resistance, suitable for welding scenarios requiring high stability.
3. Applications of CTIA’s Tungsten Electrodes in Aluminum Alloy Welding
CTIA’s tungsten electrodes are mainly used for welding aluminum plates, tubes, profiles, and structural components. They are widely applied in new energy vehicle battery trays, rail transit structures, aerospace lightweight alloy components, marine aluminum structures, heat exchangers, and industrial aluminum equipment manufacturing. They are suitable for both manual welding and automated AC TIG welding systems.
4. Specifications of CTIA’s Tungsten Electrodes in Aluminum Alloy Welding

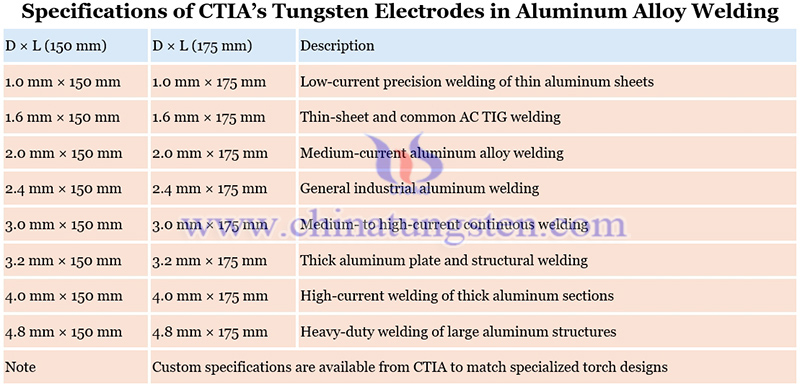

Specifications of CTIA’s tungsten electrodes in aluminum alloy welding is shown in the picture as below:
CTIA GROUP has specialized in tungsten electrode manufacturing for more than 30 years. With mature powder metallurgy and precision machining capabilities, CTIA can consistently supply pure tungsten, zirconiated tungsten, lanthanated tungsten, ceriated tungsten, and composite rare earth tungsten electrodes. Customized diameters and lengths are available to provide reliable electrode solutions for AC TIG welding of aluminum alloys.
