What’s Ablation Tungsten Electrode?
What’s Ablation Tungsten Electrode?

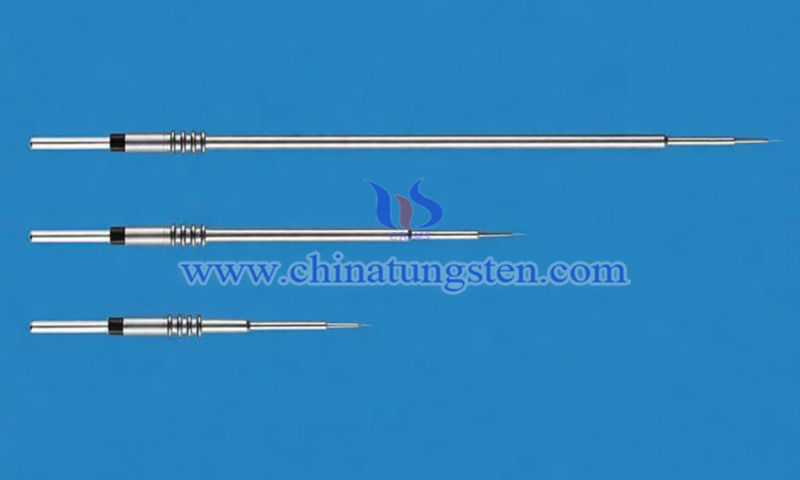

Ablation tungsten electrode, also known as micro tungsten needle ablation electrode, is a high-performance discharge electrode made from high-purity tungsten or rare-earth-doped tungsten. It is designed for high-frequency, radio-frequency, or plasma energy environments and used with high-frequency electrosurgical systems. Through strong electric field concentration at the tip, it enables localized high-energy output for precise material or tissue ablation.
Advantages of CTIA’s Ablation Tungsten Electrode
CTIA’s ablation tungsten electrode delivers stable and reliable performance in high-energy applications:
(1) High Melting Point Stability: Melting point about 3420°C, suitable for long-term high-temperature discharge environments
(2) Excellent Ablation Resistance: Reduces tip wear and extends service life
(3) Stable Electron Emission: Ensures consistent arc ignition and maintenance
(4) High Dimensional Stability: Maintains geometry under cyclic loading
(5) Low Contamination: Reduces impurity migration and improves system cleanliness and safety
In medical and high-end industrial applications, it enables millimeter or even sub-millimeter precision control.
Working Principle of CTIA’s Ablation Tungsten Electrode
The working mechanism is based on combined effects of high electric field concentration, localized thermal effect, and plasma action:
(1) Under high-frequency or Direct Current (DC) electric fields, a high current density region forms at the electrode tip
(2) Enhanced electron emission generates localized plasma discharge
(3) Energy rapidly converts into heat, causing vaporization or structural decomposition of the target material
(4) Controlled energy density enables precise micro-area ablation while minimizing thermal diffusion
In Radio Frequency Ablation (RFA) systems, tungsten electrode serves as the core energy delivery component.
Applications of CTIA’s Ablation Tungsten Electrode

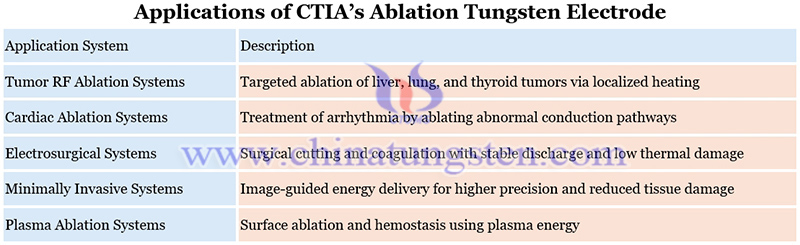

Ablation tungsten electrodes are mainly used in medical devices related to radio-frequency energy and minimally invasive treatment. Applications of CTIA’s ablation tungsten electrode are shown in picture below:
Specifications of CTIA’s Ablation Tungsten Electrode
(1) Diameter: 0.2–3.0 mm
(2) Length: 10–300 mm
(3) Tip Radius: 0.01–0.5 mm
(4) Tip Structure: needle, blunt-round
(5) Note: CTIA provides customized ablation tungsten electrode solutions based on equipment requirements
Drawing on more than 30 years of expertise in tungsten electrode manufacturing, CTIA GROUP delivers customized solutions for tip structure, dimensional precision, and material systems engineered for radio frequency ablation and minimally invasive treatment equipment requirements. CTIA ablation tungsten electrodes ensure stable discharge and efficient energy focusing under high-frequency conditions, providing reliable performance for high-precision medical ablation systems.
