What's TIG Welding Tungsten Electrode?
1.What's TIG Welding Tungsten Electrode?
TIG welding tungsten electrode refers to a non-consumable electrode used in Tungsten Inert Gas Welding (TIG) or Gas Tungsten Arc Welding (GTAW). It is mainly made of high-purity tungsten combined with trace rare-earth oxides such as La₂O₃, CeO₂, and Y₂O₃ through powder metallurgy and high-temperature sintering processes.
During welding, the tungsten electrode acts as an electron emitter. Under arc excitation, it generates a high-temperature plasma arc, enabling localized melting of the base material and forming a weld joint.
2.Principle of TIG Welding and Role of Tungsten Electrode
TIG welding is an arc welding process that uses inert gas (mainly argon, Ar) to protect the welding zone. During welding, a stable arc is formed between the tungsten electrode and the workpiece. The arc generates high-temperature energy in a plasma state, melting the base metal locally and forming a weld seam. Argon shielding gas forms a protective layer over the weld zone, effectively isolating oxygen and nitrogen from the air and preventing oxidation and contamination defects.
As a non-consumable electrode, tungsten electrode does not melt during welding. It only serves as an electron emitter and arc carrier. Its high melting point (about 3422°C) and excellent thermal erosion resistance ensure arc stability and concentration, significantly improving welding quality and process control.
3.Material Composition and Performance of CTIA's TIG Welding Tungsten Electrode

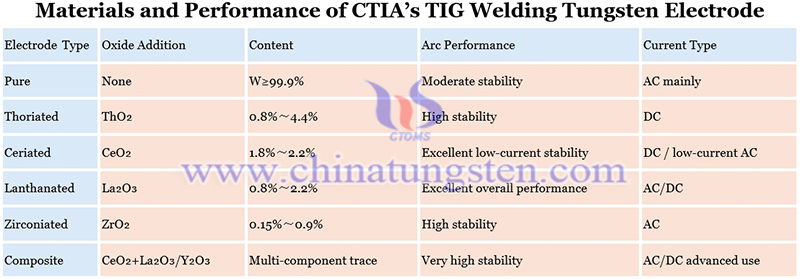

The comparison of CTIA's TIG welding tungsten electrode materials and performance is shown in picture as below:
4.Applications of CTIA’s TIG Welding Tungsten Electrode
TIG welding tungsten electrode is widely used in high-precision manufacturing industries, including aerospace structural welding, semiconductor component assembly, medical device precision welding, and chemical pressure vessel fabrication. In thin-plate welding (typically ≤3 mm) and high-cleanliness applications, the stability of tungsten electrode directly affects weld formation quality and mechanical properties.
5.Specifications of CTIA's TIG Welding Tungsten Electrode
(1) Diameter: 0.5–10.0 mm
(2) Length: 150 mm, 175 mm, customizable
(3) Surface Condition: polished
(4) Composition Types: pure tungsten, thoriated, ceriated, lanthanated, zirconiated, yttriated, and composite rare-earth tungsten electrodes
(5) Customization: CTIA supports diameter, length, doping system customization
With more than 30 years of tungsten electrode manufacturing experience, CTIA has established a complete system covering powder preparation, doping control, isostatic pressing, and precision grinding. Electrode diameter can be customized from 0.5 to 10 mm. By strictly controlling grain structure and rare-earth distribution, arc stability and service life are improved, meeting the consistency and reliability requirements of high-end welding equipment.
