Tungsten Needle Electrode in Minimally Invasive Surgery
Tungsten needle electrodes are precision conductive electrodes used in minimally invasive surgery, including high-frequency electrosurgical systems, radiofrequency ablation equipment, and interventional medical devices. Tungsten offers high melting point, high density, excellent electrical conductivity, and outstanding dimensional stability at elevated temperatures, enabling stable discharge and energy transmission under high-frequency current. Compared with conventional metal electrodes, tungsten needle electrodes provide superior tip erosion resistance, excellent dimensional consistency, high machining precision, and long service life, making them widely used in minimally invasive surgical instruments and high-frequency energy delivery systems.
1.Characteristics of CTIA’s Tungsten Needle Electrodes in Minimally Invasive Surgery
CTIA’s tungsten needle electrodes offer the following characteristics:
(1) Tungsten purity of 99.95% or higher, ensuring excellent material cleanliness and consistency;
(2) Melting point up to 3,422°C, providing outstanding high-temperature resistance for high-frequency energy output applications;
(3) Density of approximately 19.25 g/cm³, delivering high rigidity and resistance to bending deformation;
(4) Electrical resistivity of approximately 5.5 × 10⁻⁸ Ω·m, enabling stable transmission of high-frequency current;
(5) Thermal expansion coefficient of approximately 4.5 × 10⁻⁶/K, ensuring excellent dimensional stability at elevated temperatures and maintaining tip precision;
(6) Fine needle tips create highly concentrated energy output zones, improving treatment accuracy and energy utilization efficiency;
(7) Excellent tip erosion resistance, maintaining tip consistency and operational stability over extended use;
(8) Supports ultra-fine micron-level tip machining and precision surface treatments to satisfy the application requirements of precision medical devices.
2.Applications of CTIA’s Tungsten Needle Electrodes in Minimally Invasive Surgery
CTIA’s tungsten needle electrodes are used in: (1) radiofrequency ablation equipment; (2) high-frequency electrosurgical devices; (3) minimally invasive interventional surgical instruments; (4) electrocautery and hemostatic systems; (5) nerve stimulation and diagnostic equipment; (6) medical research devices.

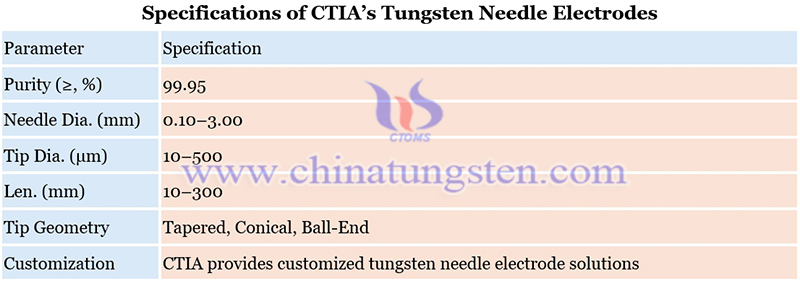

3.Specifications of CTIA’s Tungsten Needle Electrodes in Minimally Invasive Surgery
CTIA’s tungsten needle electrodes are available in the following specifications:
Drawing on more than 30 years of tungsten electrode manufacturing experience, CTIA GROUP combines high-purity tungsten powder processing, powder metallurgy forming, sintering, and precision grinding capabilities. CTIA supplies a wide range of tungsten needle electrodes for minimally invasive surgical applications and delivers high-precision, high-consistency, and high-reliability solutions for medical device manufacturers.
